ShrinkRC Body Mounts for RC4WD 1987 Toyota XtraCab

ShrinkRC Body Mounts for RC4WD 1987 Toyota XtraCab

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out
Shipping calculated at checkout.
Select Chassis

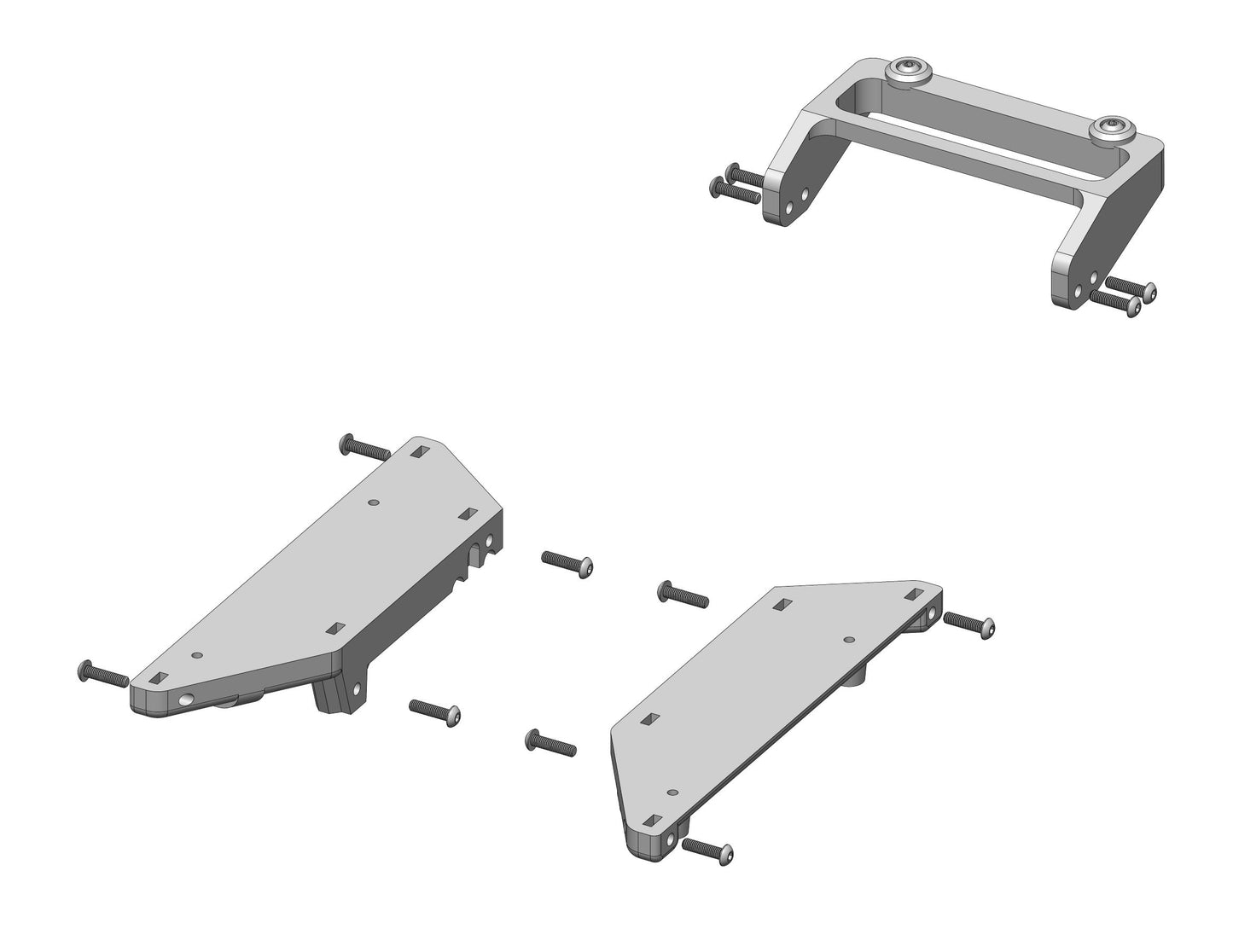

Body mount system for RC4WD 1987 Toyota XtraCab

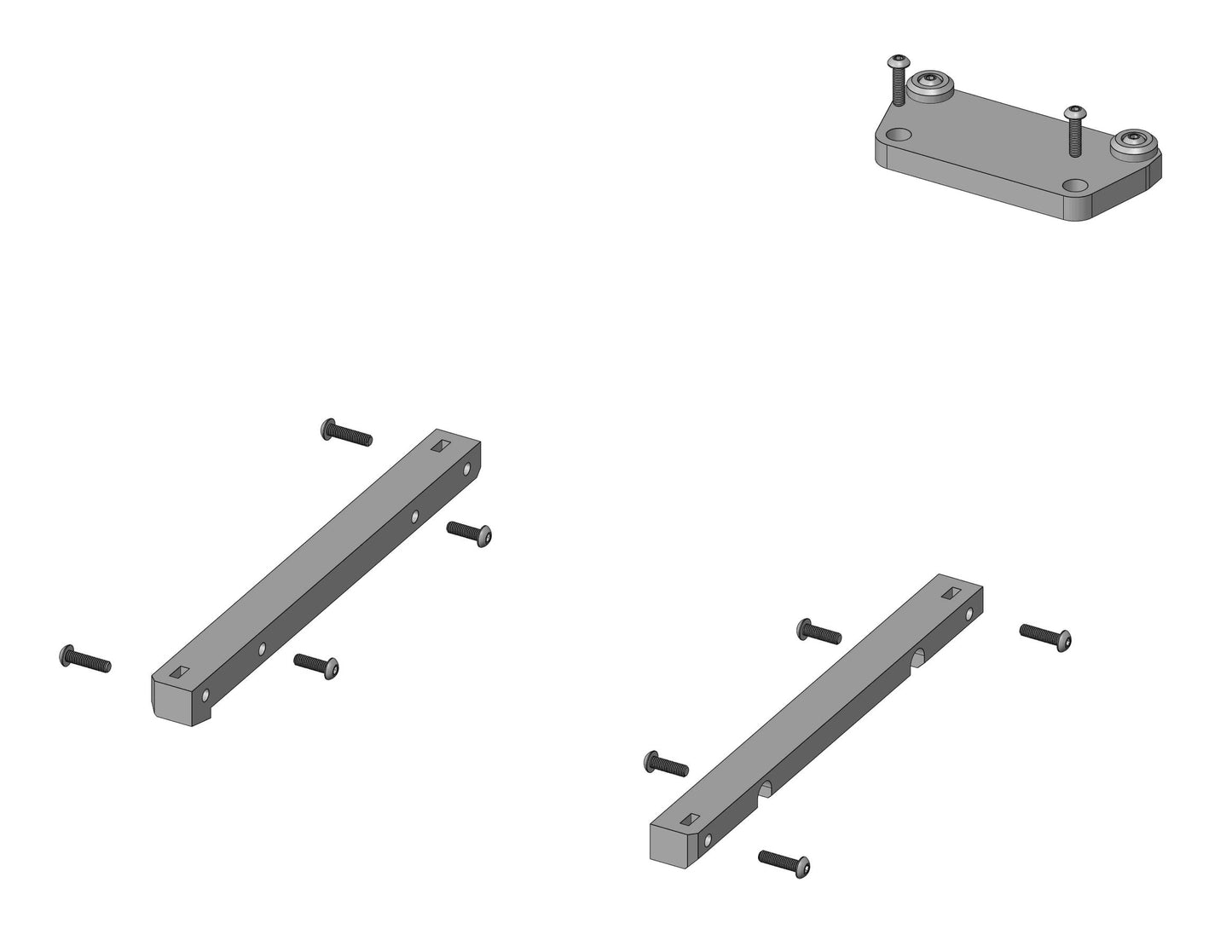

Vanquish VS410 All Versions Works with Fordyce, Phoenix, Pro, Ultra, and Builder's Kit. Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed). Works best with straight axles. Can also be used with portals but the front wheels will sit forward about 5mm due to the built in caster.

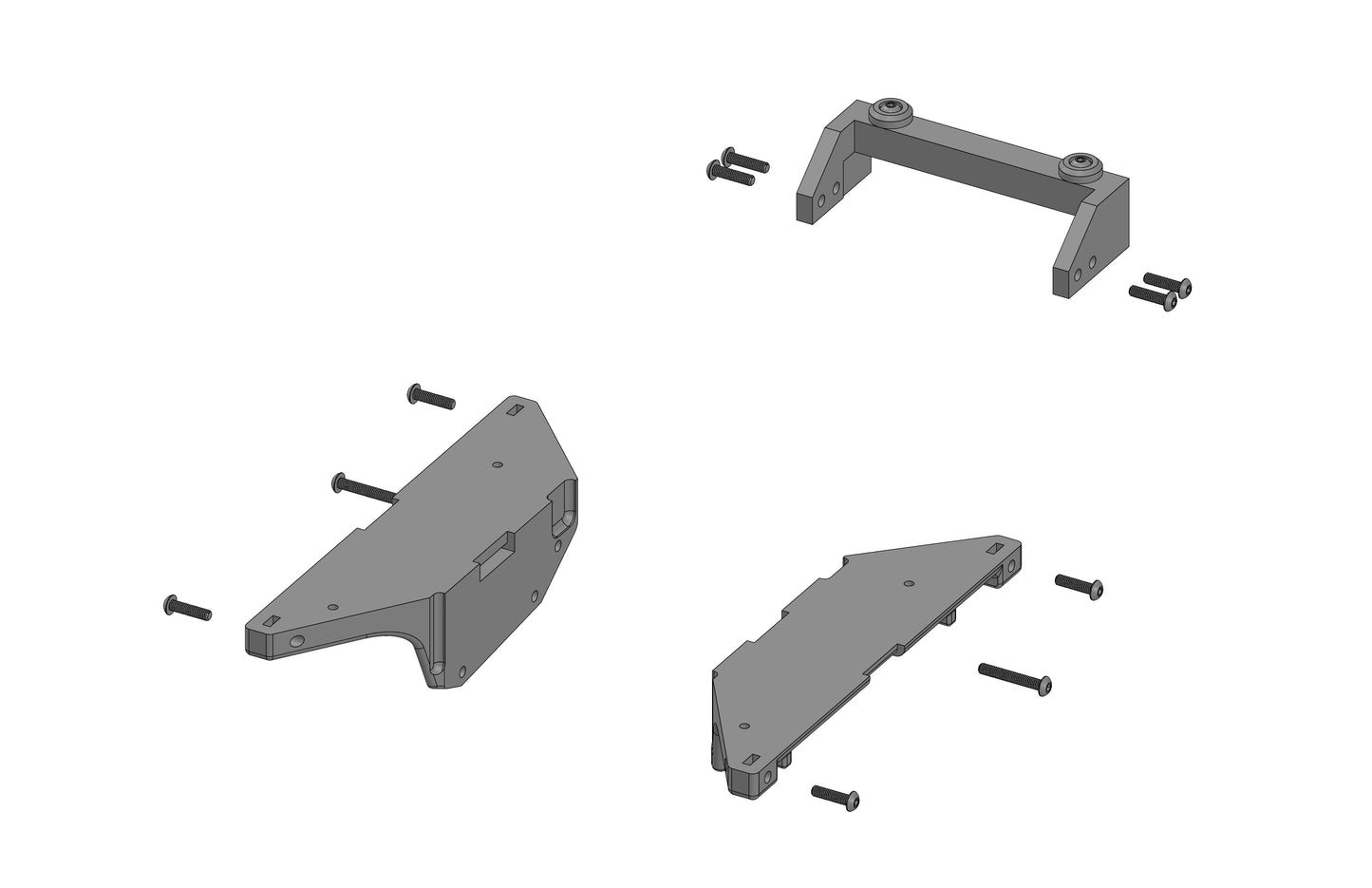

Vanquish VRD All Versions Works with Carbon, Stance and Builder's Kit. Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed). Works best with straight axles. Can also be used with portals but the front wheels will sit forward about 5mm due to the built in caster.

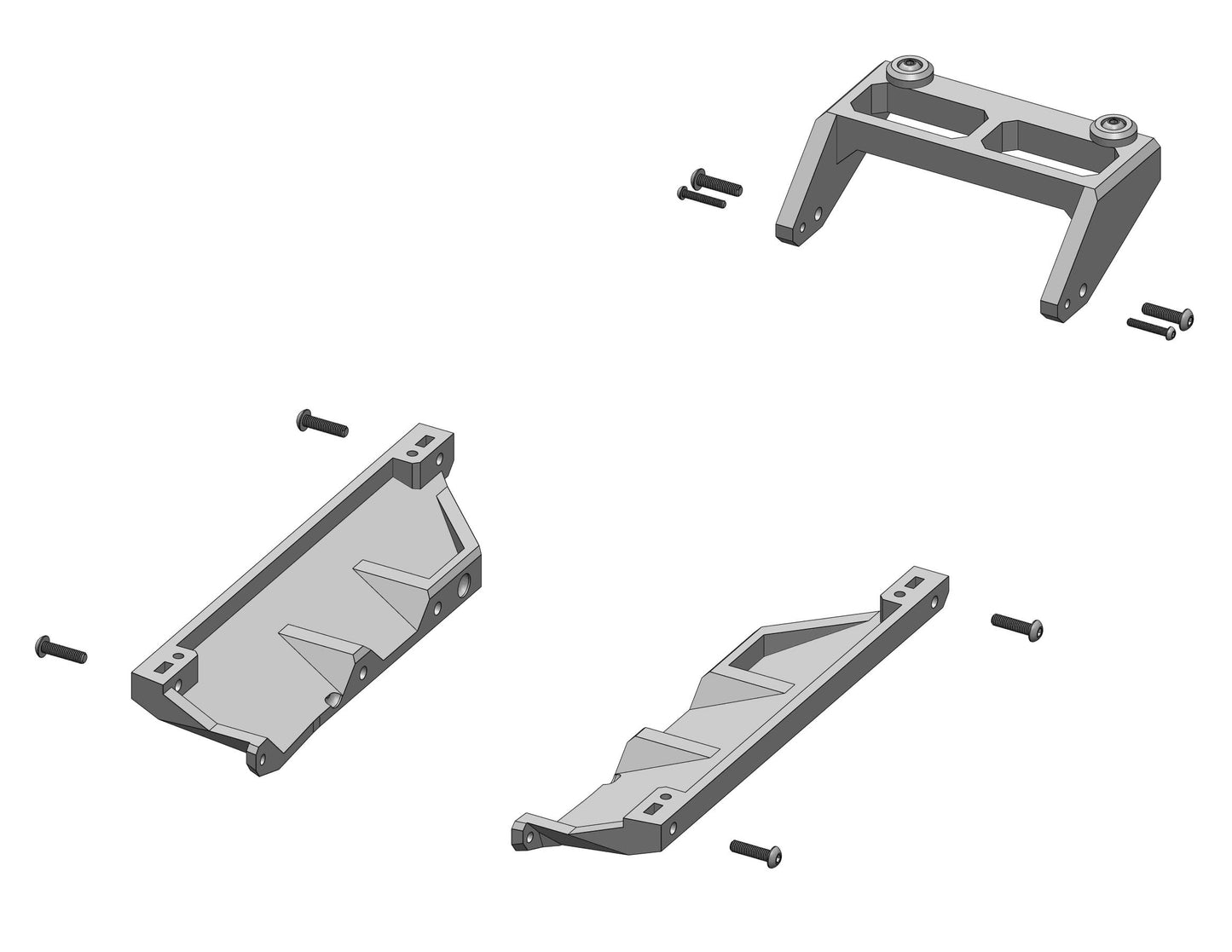

Axial SCX10ii Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed). Not compatible with SCX10iii.

Axial SCX10 Pro **READ THIS** Maximum tire size 4.19" - Tires larger than 4.19" are not recommended! Note: the body mounts for the Pro are purposely designed to push the front wheels forward several millimeters, to allow the use of 4.19" tires with trimmed fender wells. The front axle is not centered in the wheelwell. Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

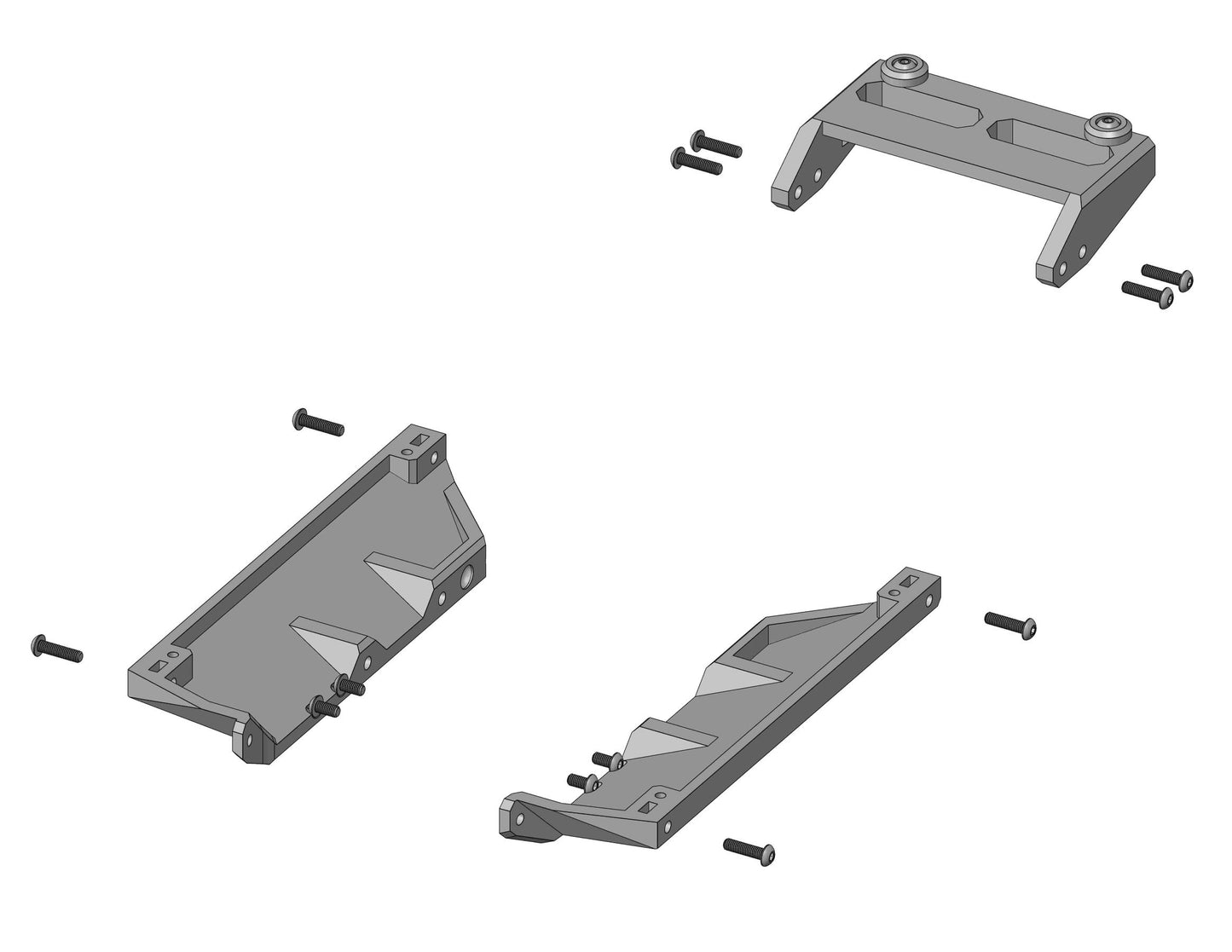

Element Enduro Sendero, Trailrunner Use 12.3" rear links from Element rear link set (p/n ASC42044) with Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed). Not recommended for Enduro SE, Utron, or Stealth XF Transmission if using an interior. Not compatible with Comp Fox Competition Rock Crawler kit.

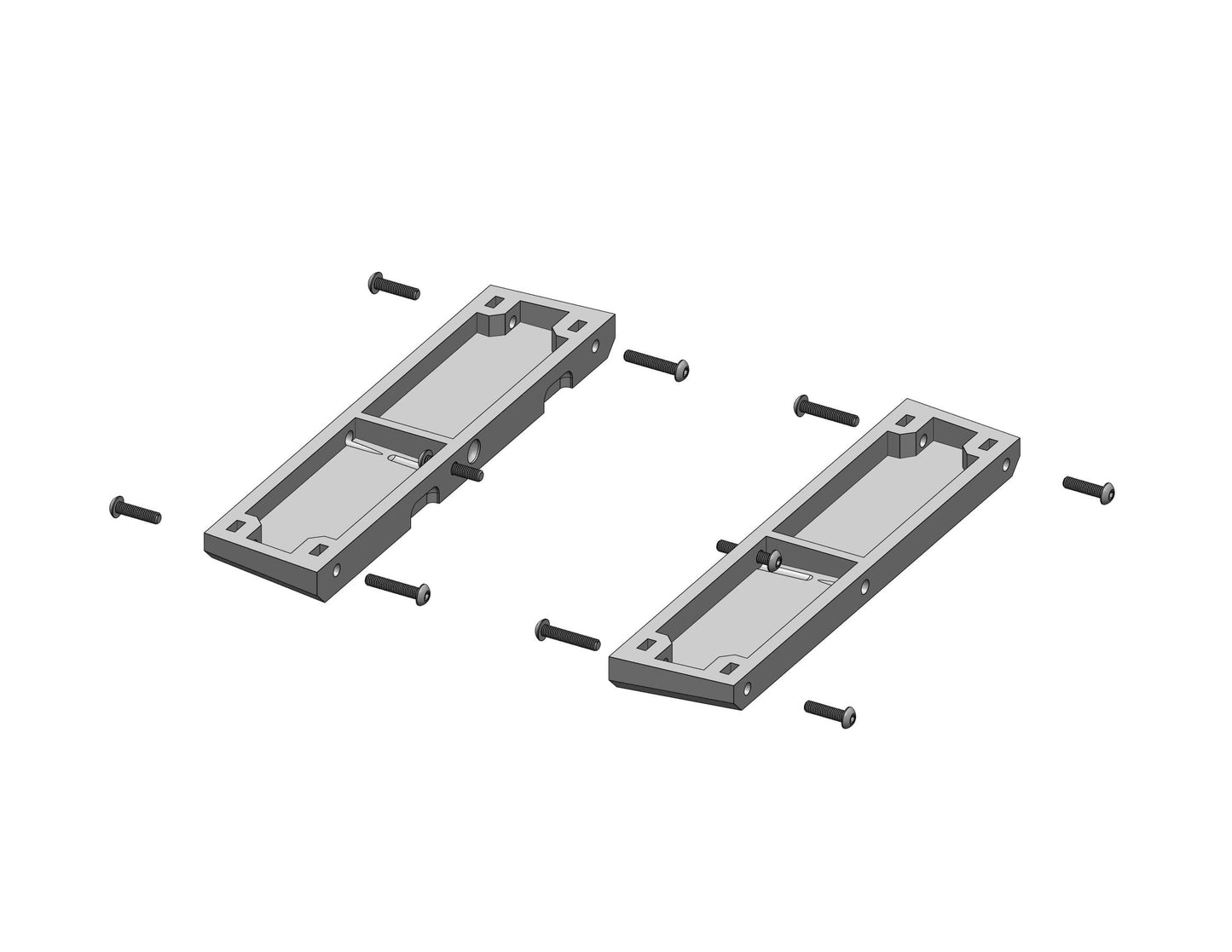

RC4WD Trail Finder 2 LWB Direct Fit.

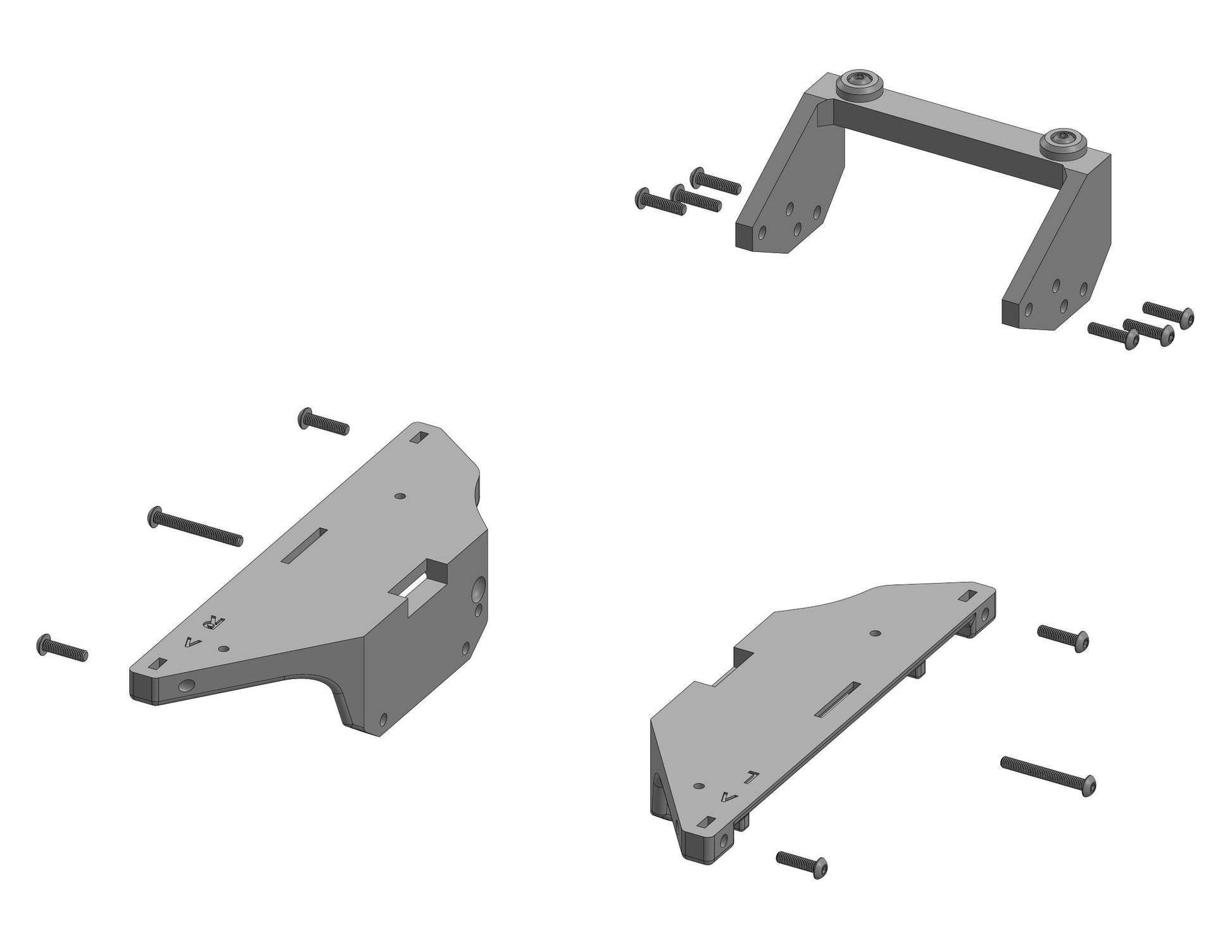

Redcat Ascent & Fusion Use RC4WD long rod ends (p/n RC4ZS0403) on one end of all four rear links. Replace rear drive shaft tubes and splined center slider with Axial WB8-HD (p/n AX31586).

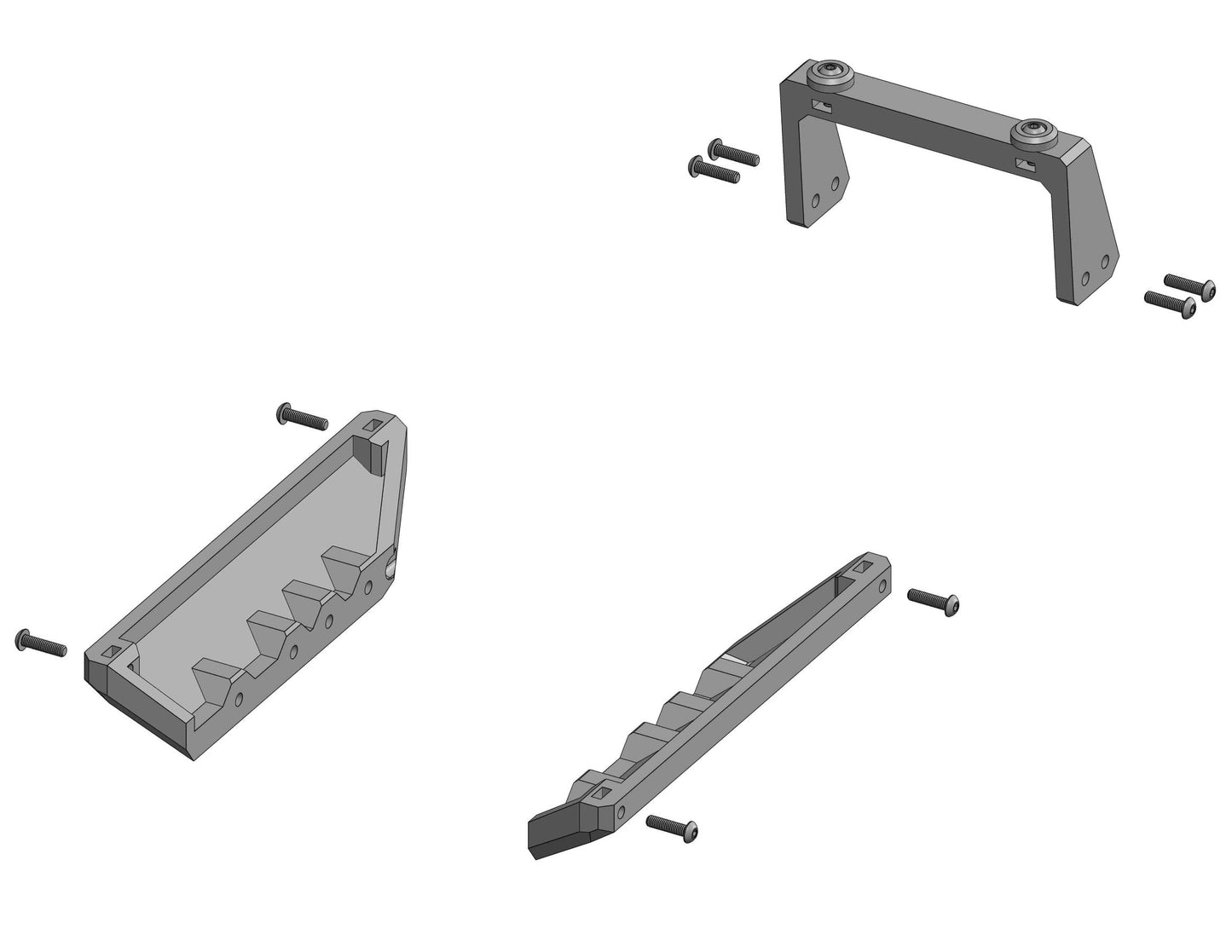

Redcat Gen8 Works with stock links.

SSD RC Trail King Pro Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

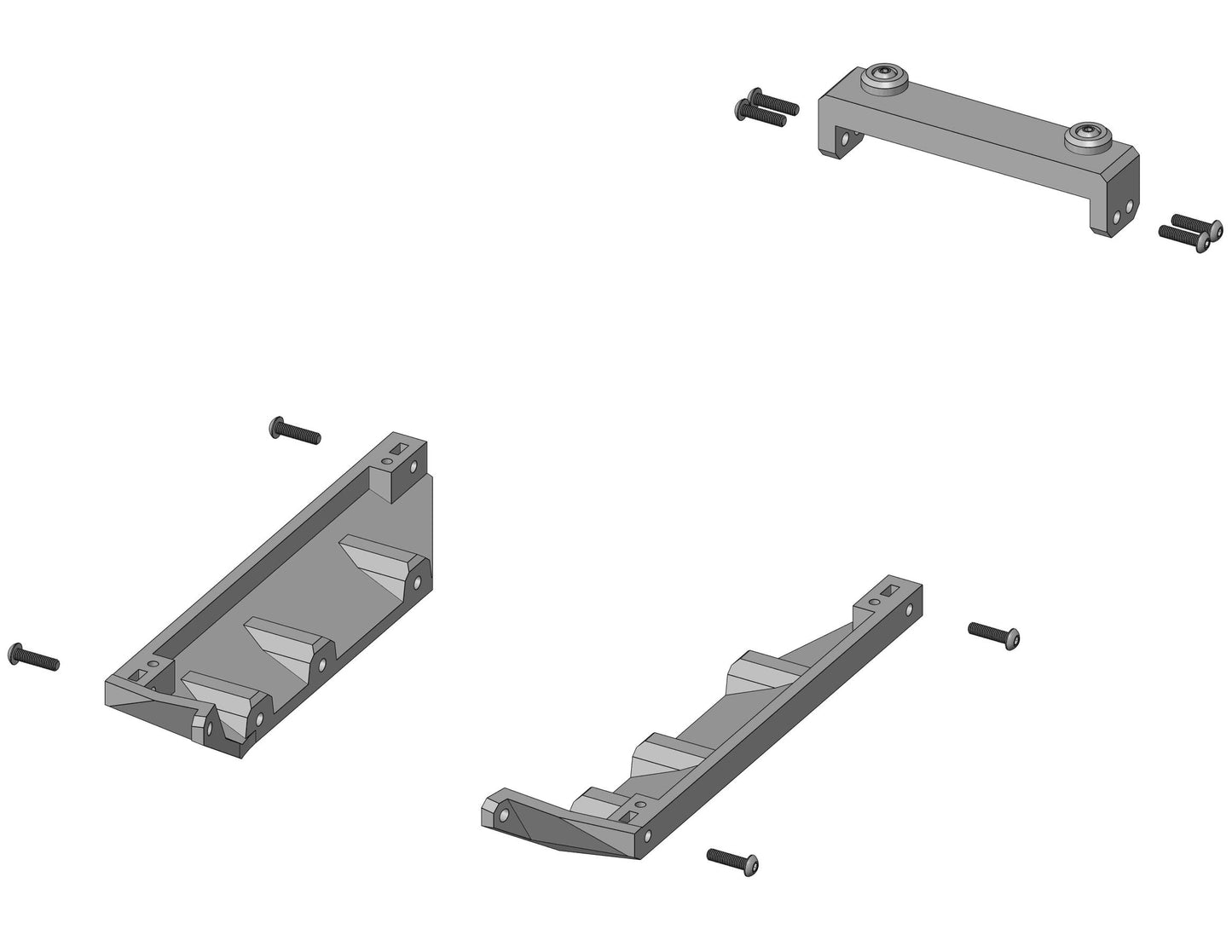

Traxxas TRX-4 Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

Please read:

4.19 Tires recommended and/or be prepared to cut the body.

Interiors will require cutting to clear the transmission. It is typically necessary to relocate the factory ESC, receiver, and battery tray.


Holes must be made in the bed to clear the rear shock towers, or switch to shorter towers, or cantilevers.

Stainless steel hardware included. Body not included. Made in USA. Shrink RC

Shop Toyota XtraCab bodies here: RC4WD 1987 Toyota XtraCab

Shop for RC Crawlers -> Amain Hobbies

This product is not affiliated with, endorsed by, or associated with Traxxas, L.P., or its products and services. Traxxas® and TRX-4® are trademarks or registered trademarks of Traxxas, L.P.
