ShrinkRC Body Mounts for RC4WD Chevrolet K10 Scottsdale

Body mount system for RC4WD Chevrolet K10 Scottsdale

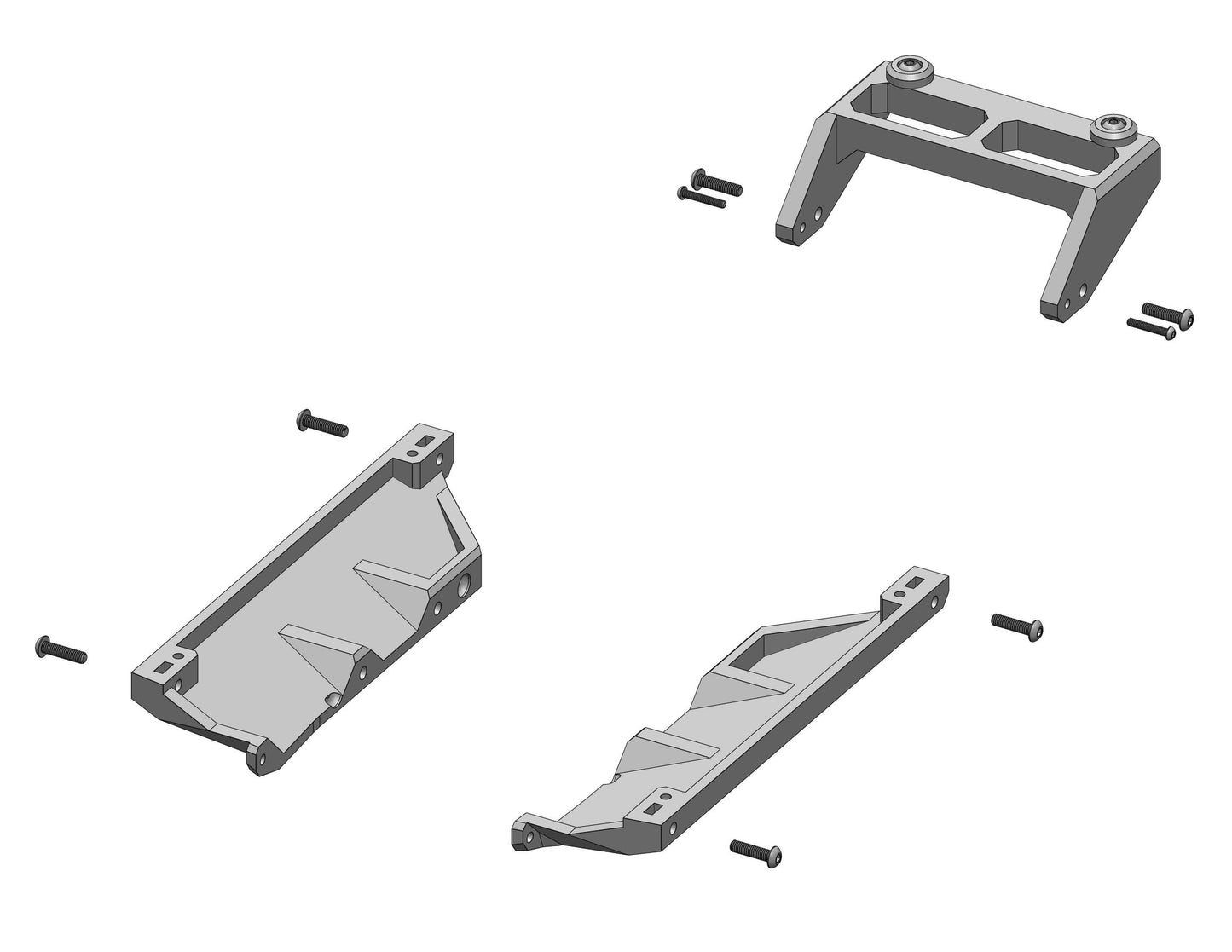

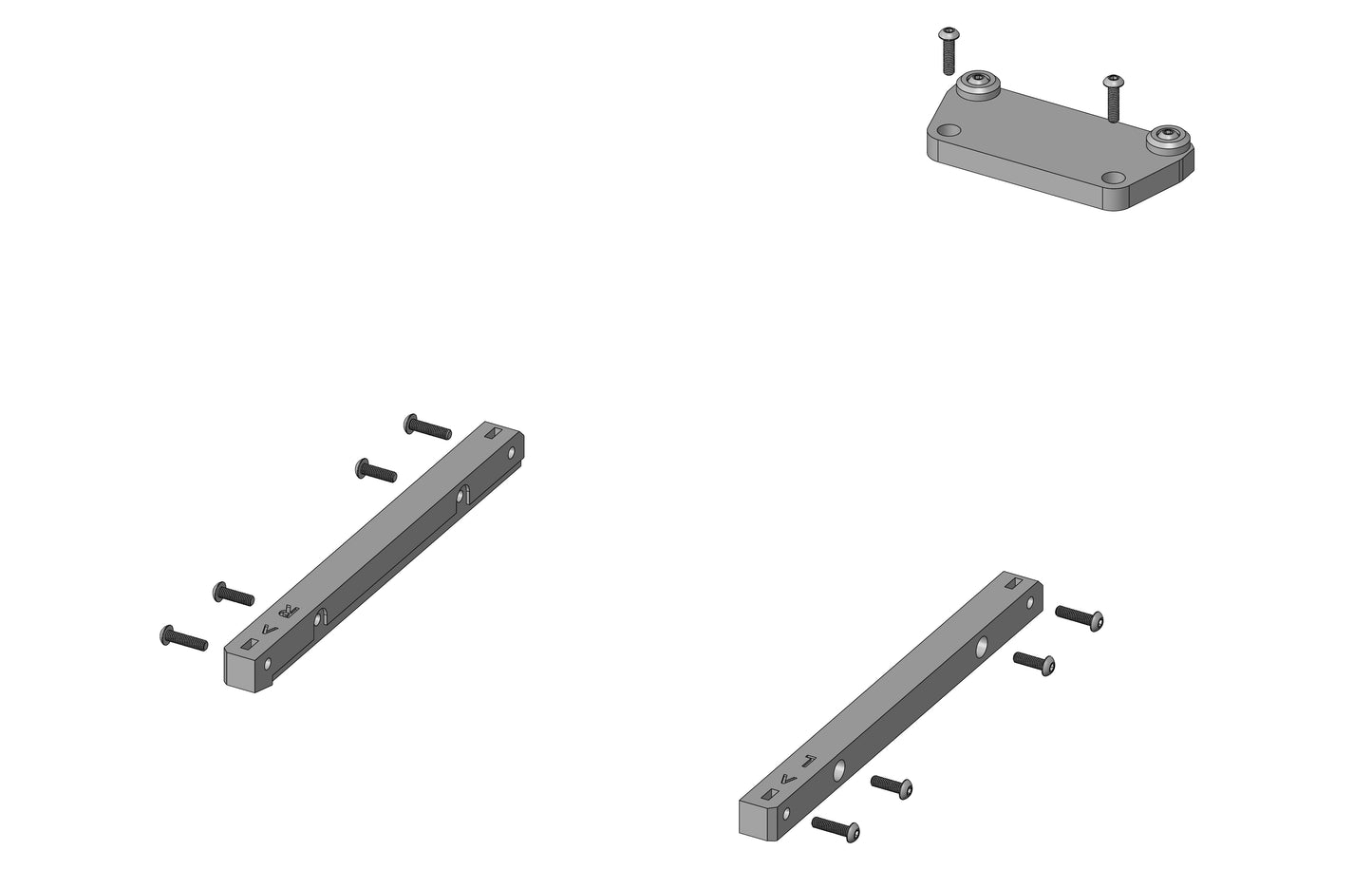

Vanquish VS410 All Versions Works with Fordyce, Phoenix, Pro, Ultra, and Builder's Kit. Front wheels will sit forward about 5mm if running portals. Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

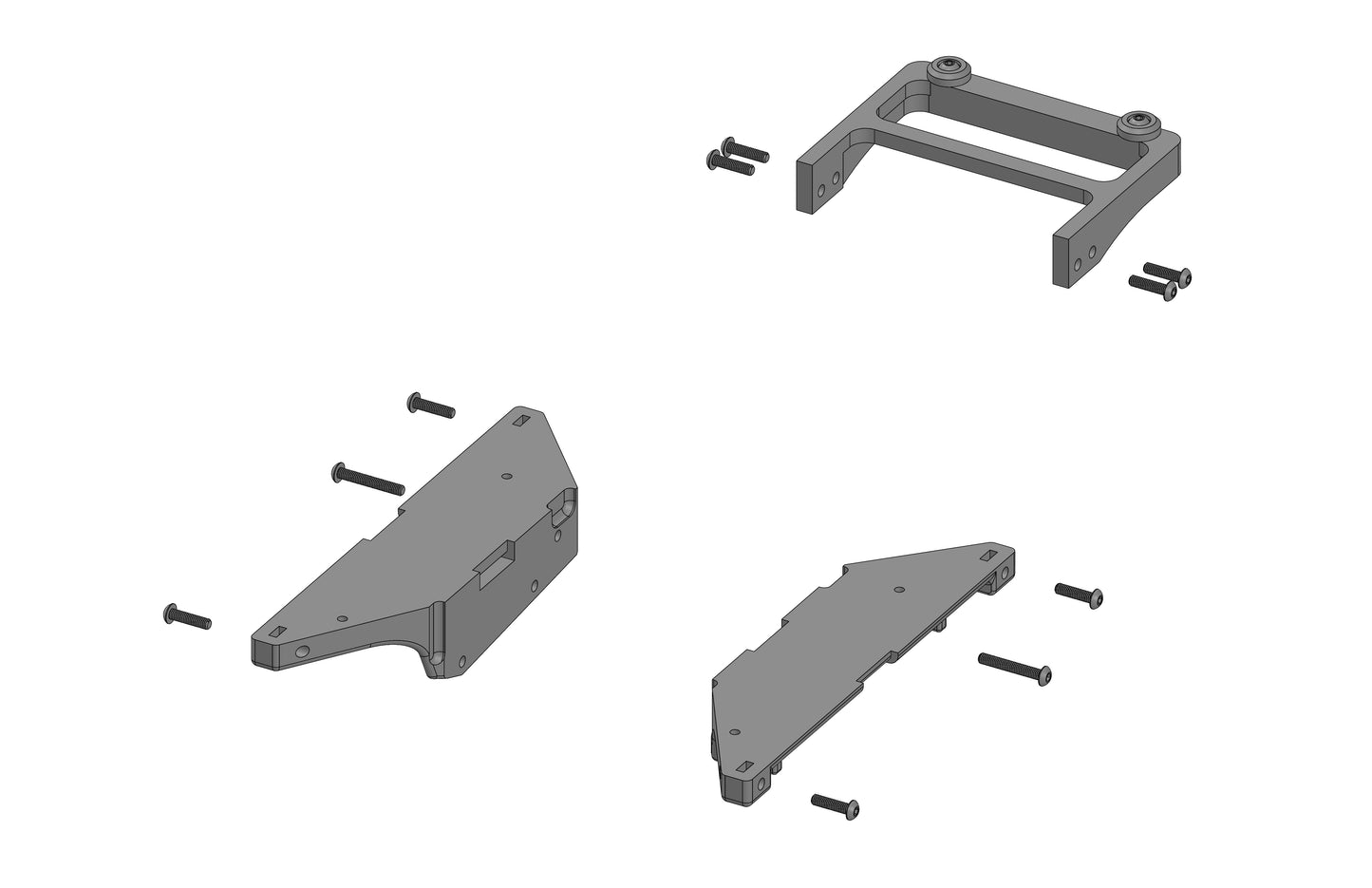

Vanquish VRD All Versions Works with Carbon, Stance and Builder's Kit. The body mounts for the VRD are designed to push the front wheels forward several millimeters, to allow the use of larger tires with trimmed fender wells. Front wheels will sit forward an extra 5mm if running portals. Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

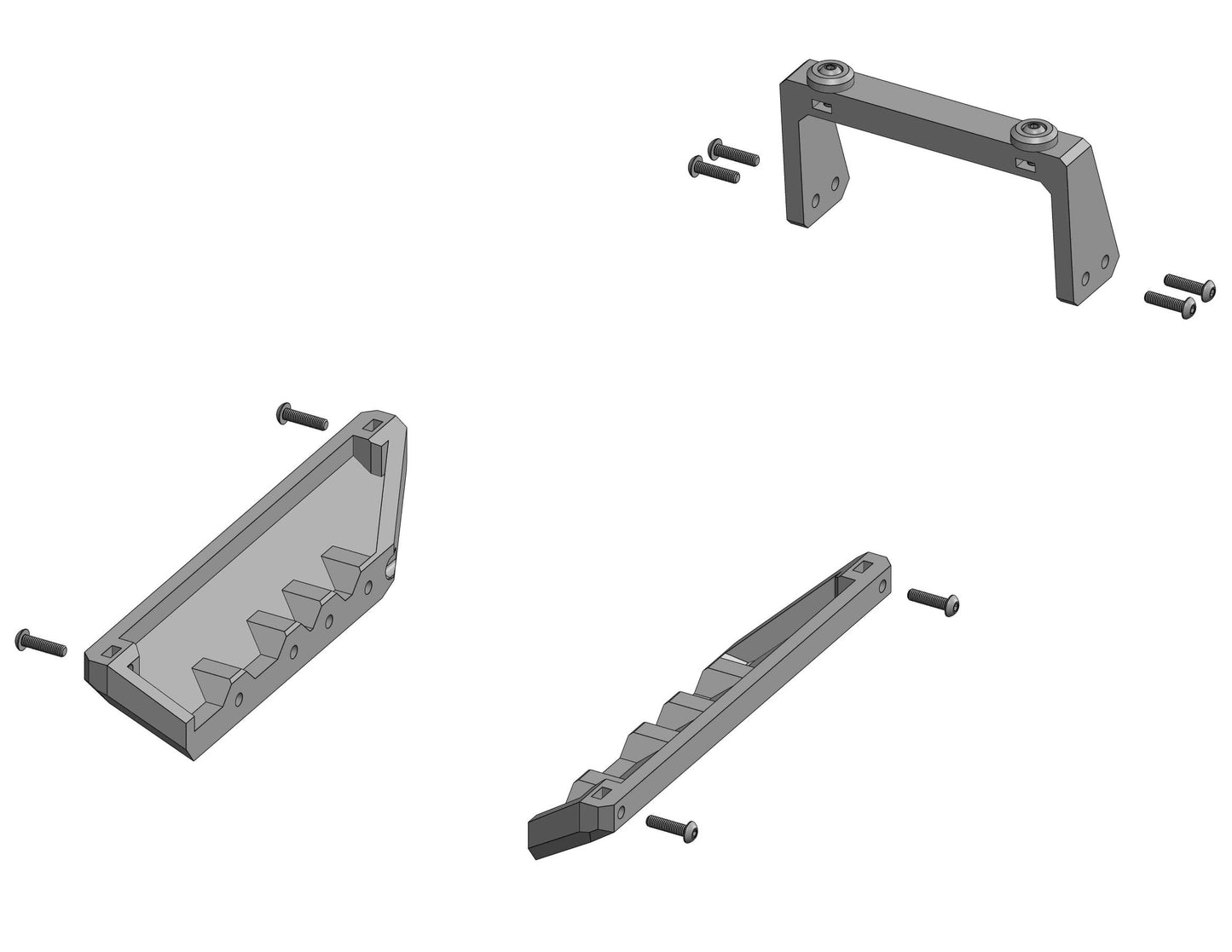

Axial SCX10ii Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed). Not compatible with SCX10iii.

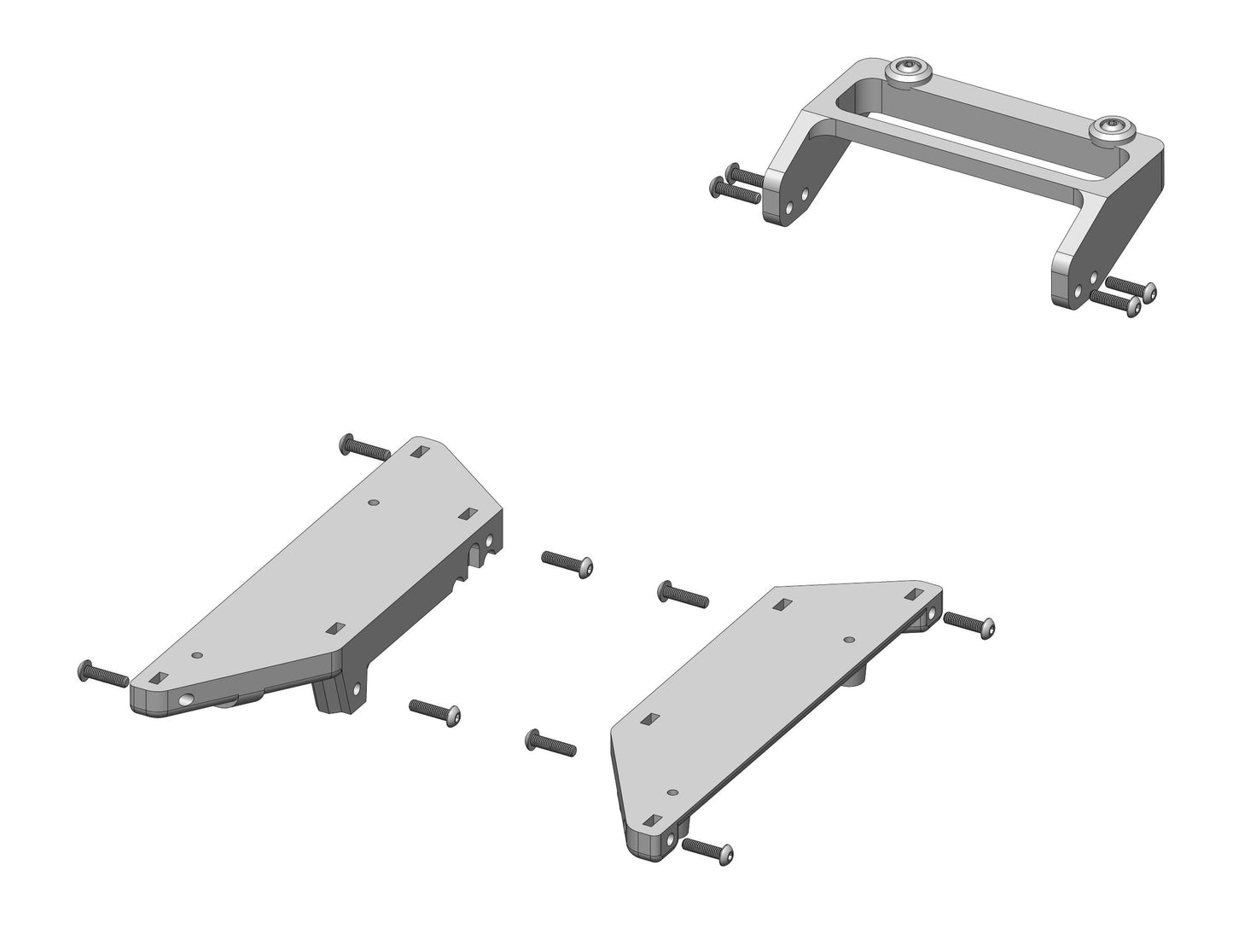

Axial SCX10 Pro The body mounts for the Pro are designed to push the front wheels forward several millimeters, to allow the use of larger tires with trimmed fender wells. Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

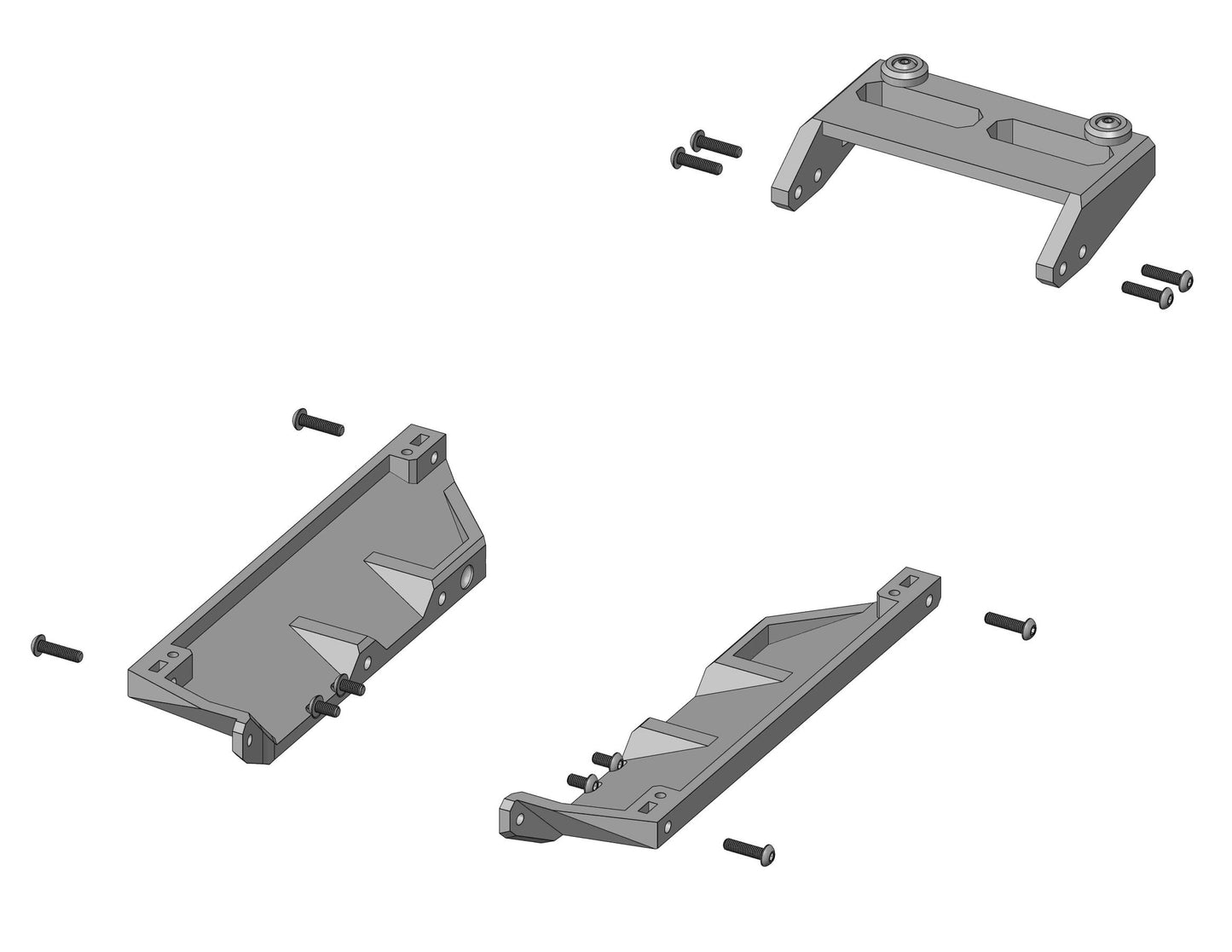

Element Enduro Sendero, Trailrunner Use 12.3" rear links from Element rear link set (p/n ASC42044) with Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed). Not recommended for Enduro SE, Utron, or Stealth XF Transmission if using an interior. Not compatible with Comp Fox Competition Rock Crawler kit.

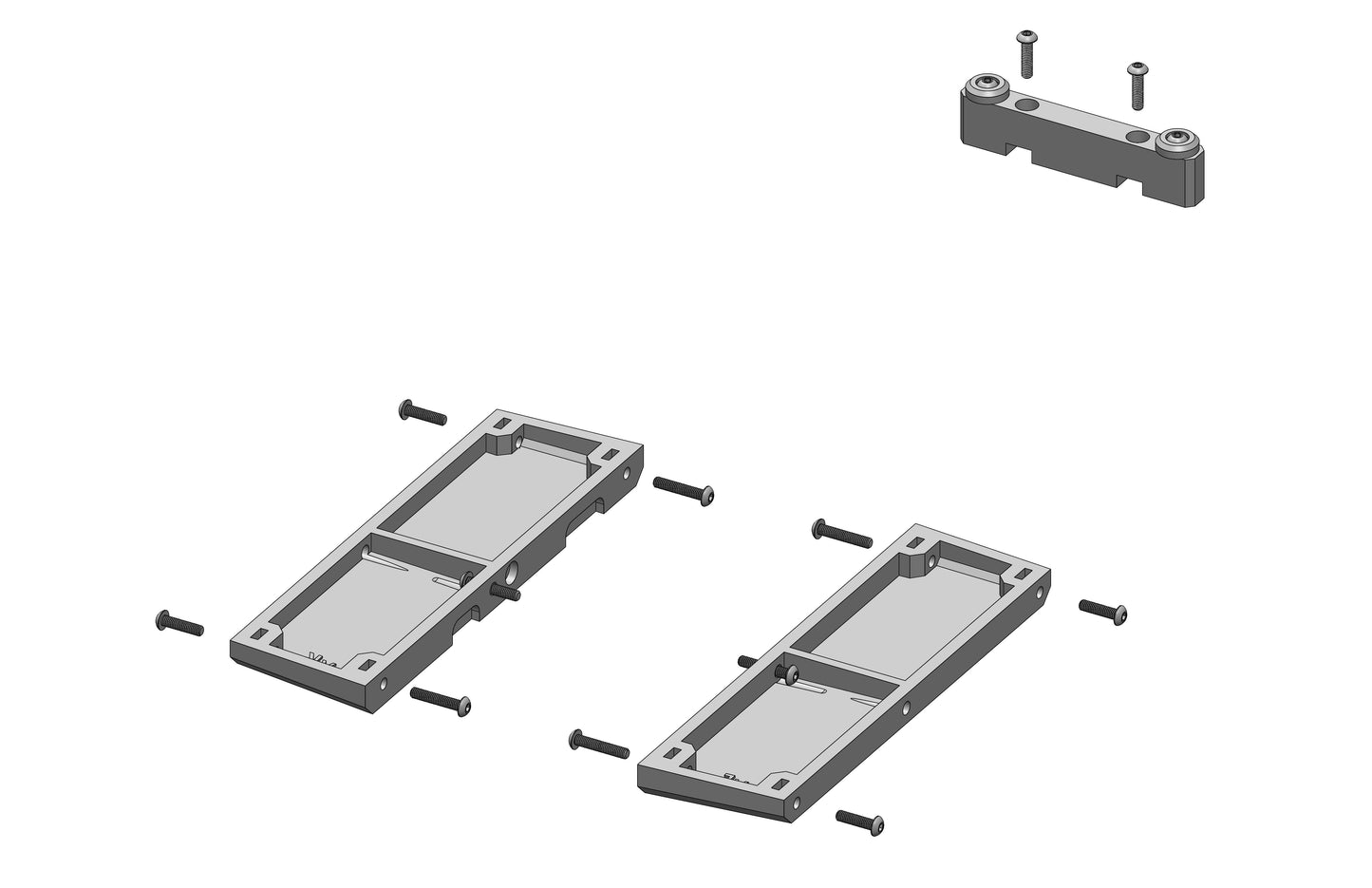

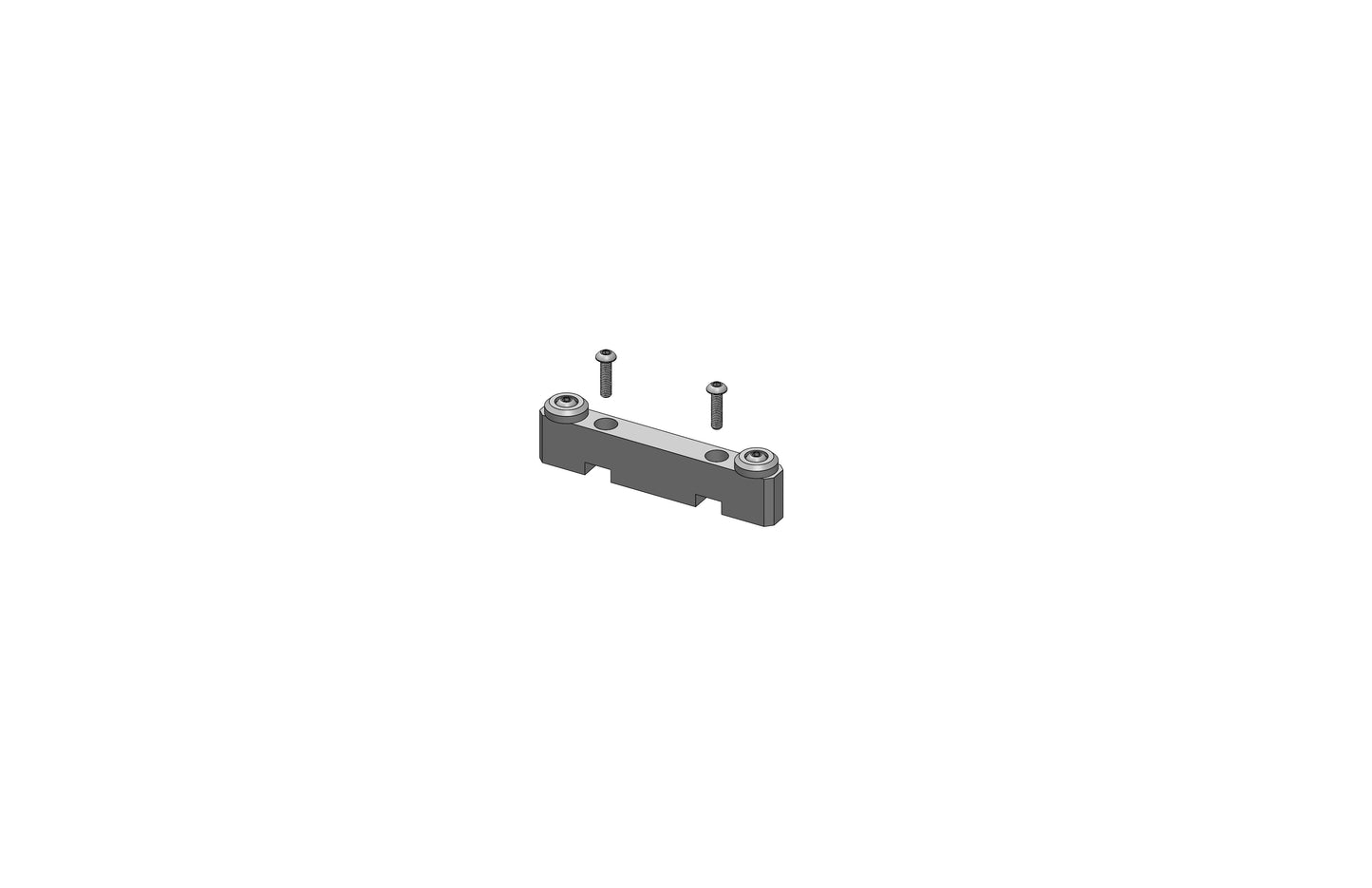

RC4WD Trail Finder 2 LWB Direct Fit.

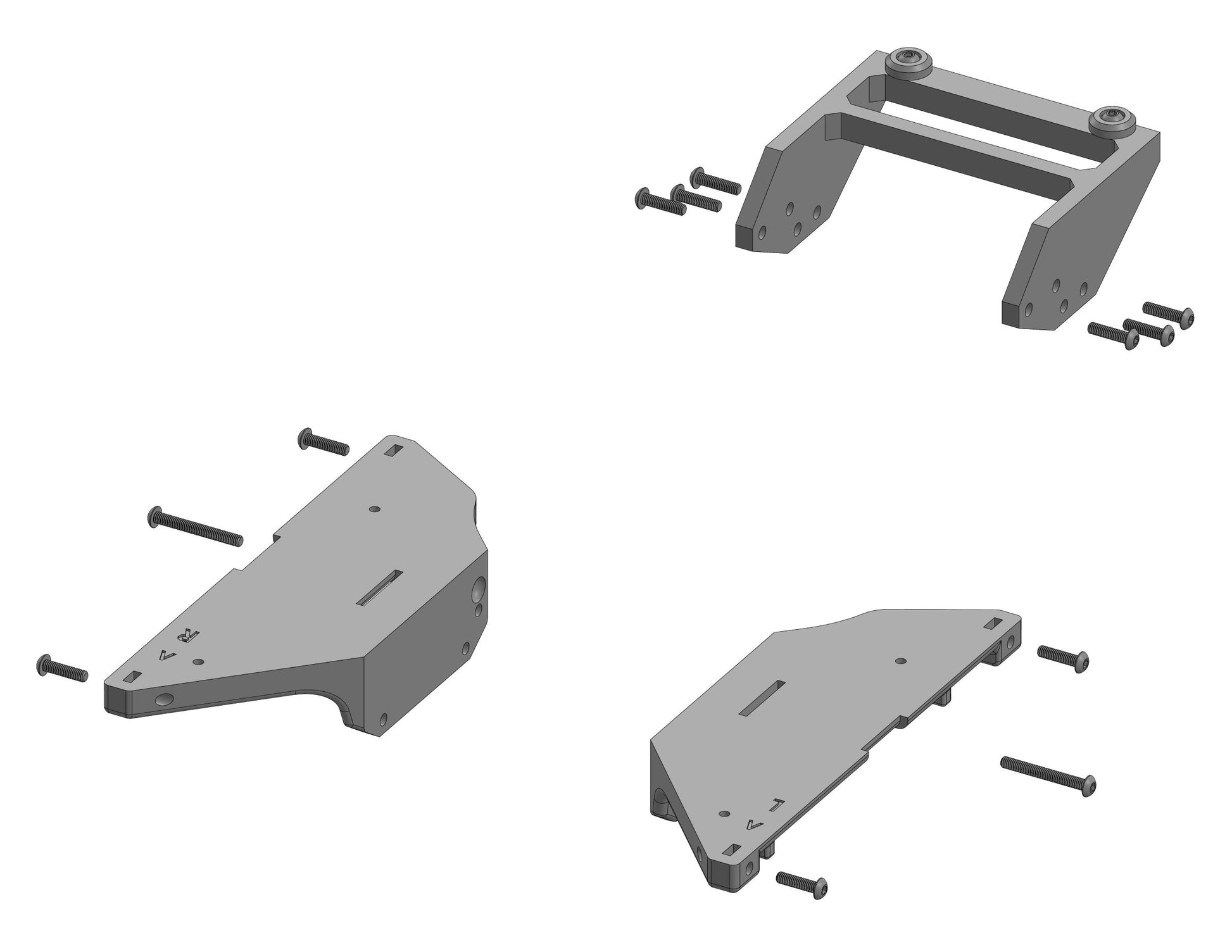

Redcat Ascent & Fusion Use RC4WD long rod ends (p/n RC4ZS0403) on one end of all four rear links. Replace rear drive shaft tubes and splined center slider with Axial WB8-HD (p/n AX31586).

SSD RC Trail King Pro Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

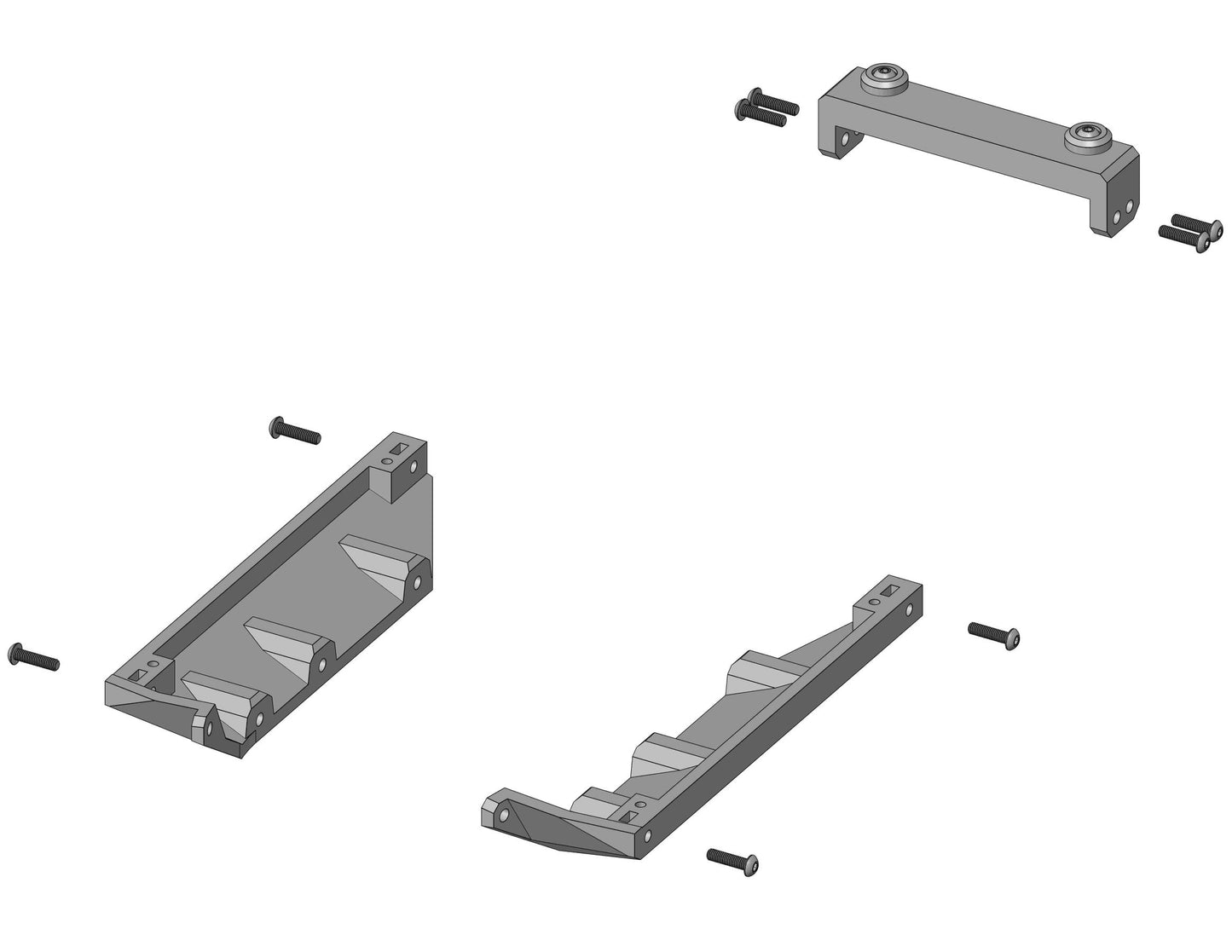

Traxxas TRX-4 Use Traxxas long rod ends (p/n TRA5525) on one end of all four rear links (trim the rod ends as needed).

Please read:

4.19 Tires recommended and/or be prepared to cut the body.

Interiors will require cutting to clear the transmission. It is typically necessary to relocate the factory ESC, receiver, and battery tray.

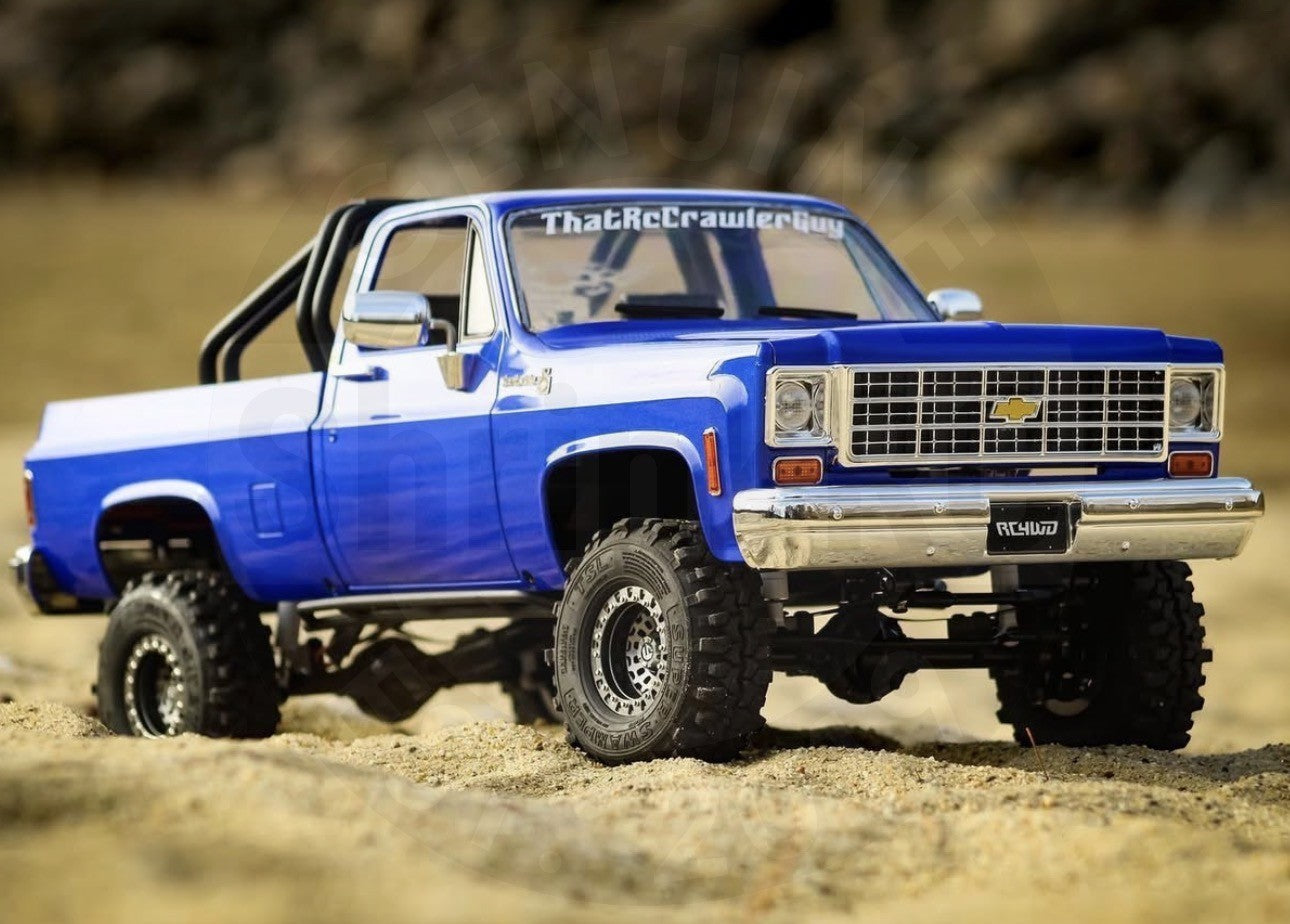

RC4WD TF2 Chevrolet K10 Scottsdale
