ShrinkRC Body Mounts for RC4WD Mojave II Two Door

ShrinkRC Body Mounts for RC4WD Mojave II Two Door

Regular price $39.99 USD
Regular price Sale price $39.99 USD
Sale Sold out
Shipping calculated at checkout.
Select Chassis

Body mount system for RC4WD Mojave II 2 Door and 1982 Toyota Pickup Hard Body

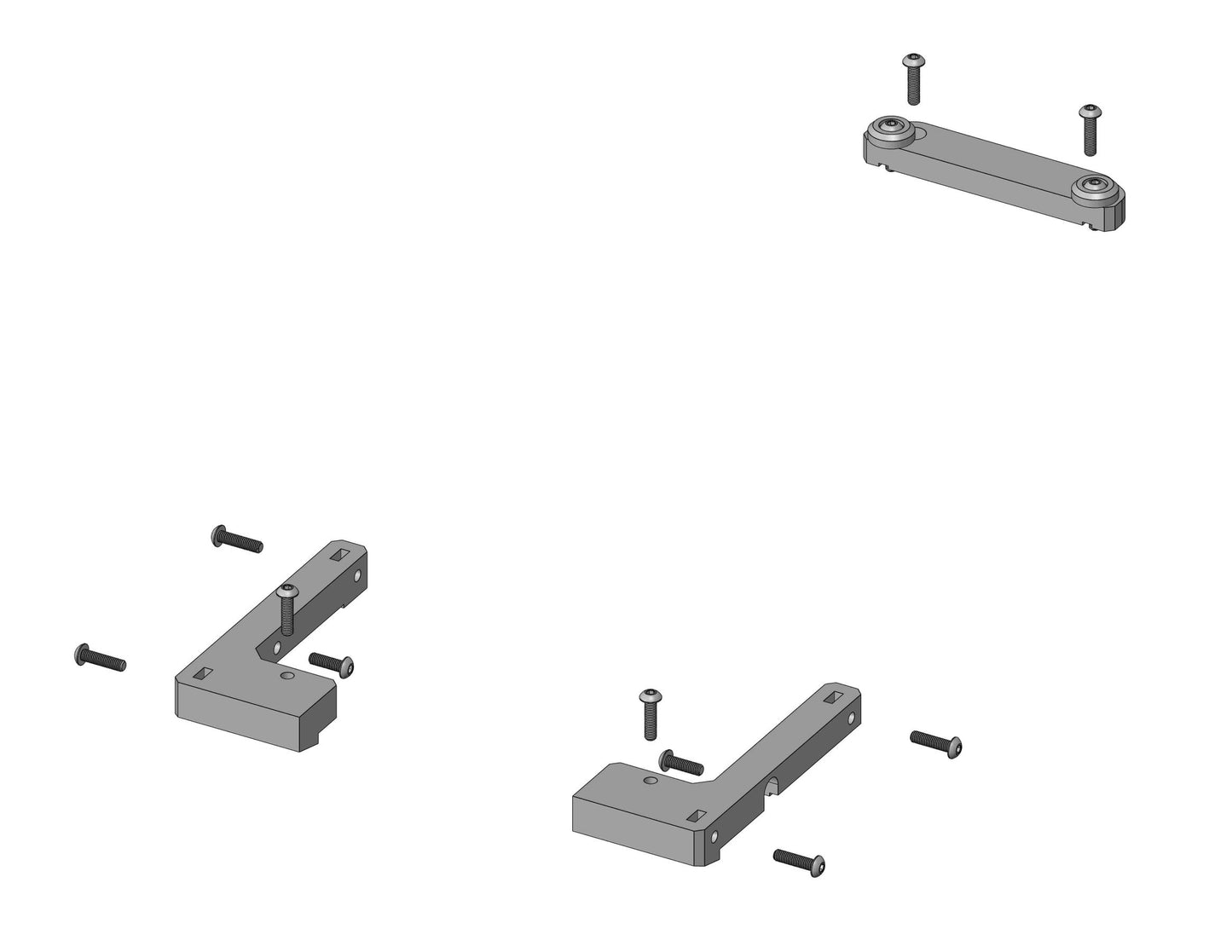

Vanquish VS410 All Versions *VFD Twin Selectable Overdrive must be locked in one position, there is no space for a servo. Works with Fordyce, Phoenix, Pro, Ultra, and Builder's Kit. Use rod ends (AX31186), upper links (AX31421), lower links (AX31419), and set screws (AX31343) to get a 11.4" wheelbase. Works best with straight axles. Can also be used with portals but the front wheels will sit forward about 5mm due to the built in caster.

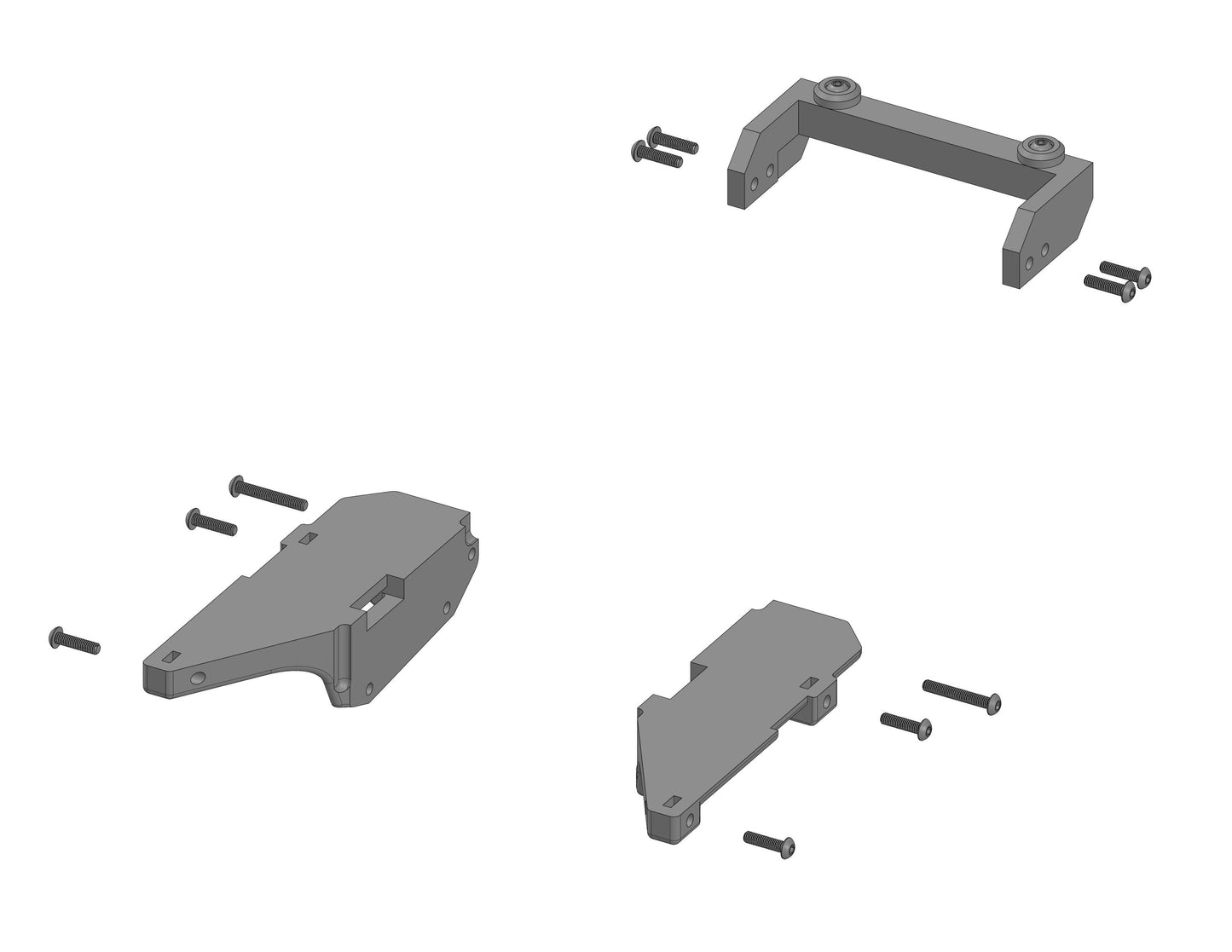

Vanquish VRD All Versions Works with Carbon, Stance and Builder's Kit. Works best with straight axles. Can also be used with portals but the front wheels will sit forward about 5mm due to the built in caster. Recommended for "truggy" style or "cab only" builds. The Carbon wheelbase is 12.67" and will NOT work with a stock Mojave Two Door bed.

Axial SCX10ii Use rod ends (AX31186), upper links (AX31421), lower links (AX31419), and set screws (AX31343) to get a 11.4" wheelbase. Not compatible with SCX10iii.

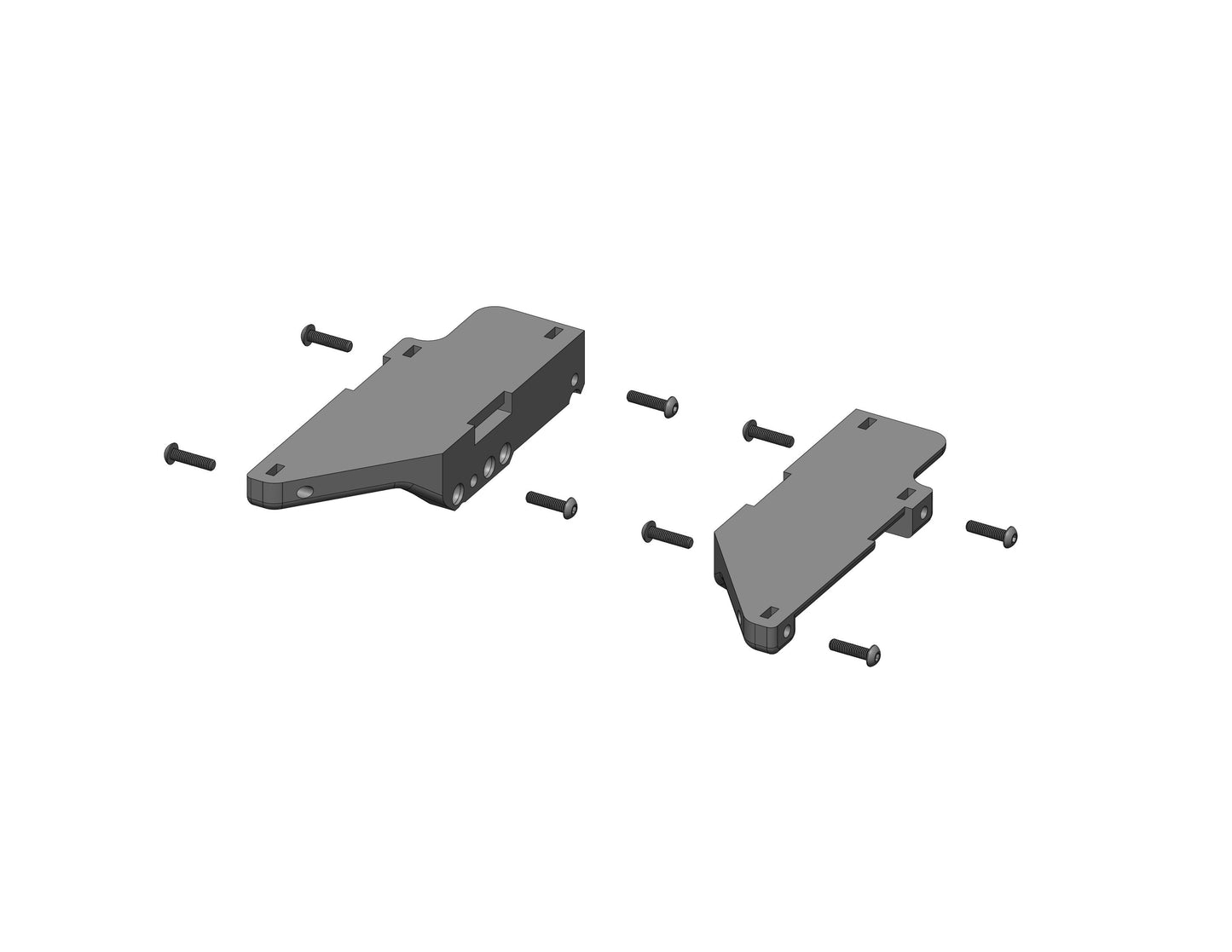

Axial SCX10 Pro Note: the body mounts for the Pro are purposely designed to push the front wheels forward several millimeters, to allow the use of larger tires with trimmed fender wells. The front axle is not centered in the wheelwell. Recommended for "truggy" style or "cab only" builds. The Pro wheelbase is 12.5" and will NOT work with a stock Mojave Two Door bed.

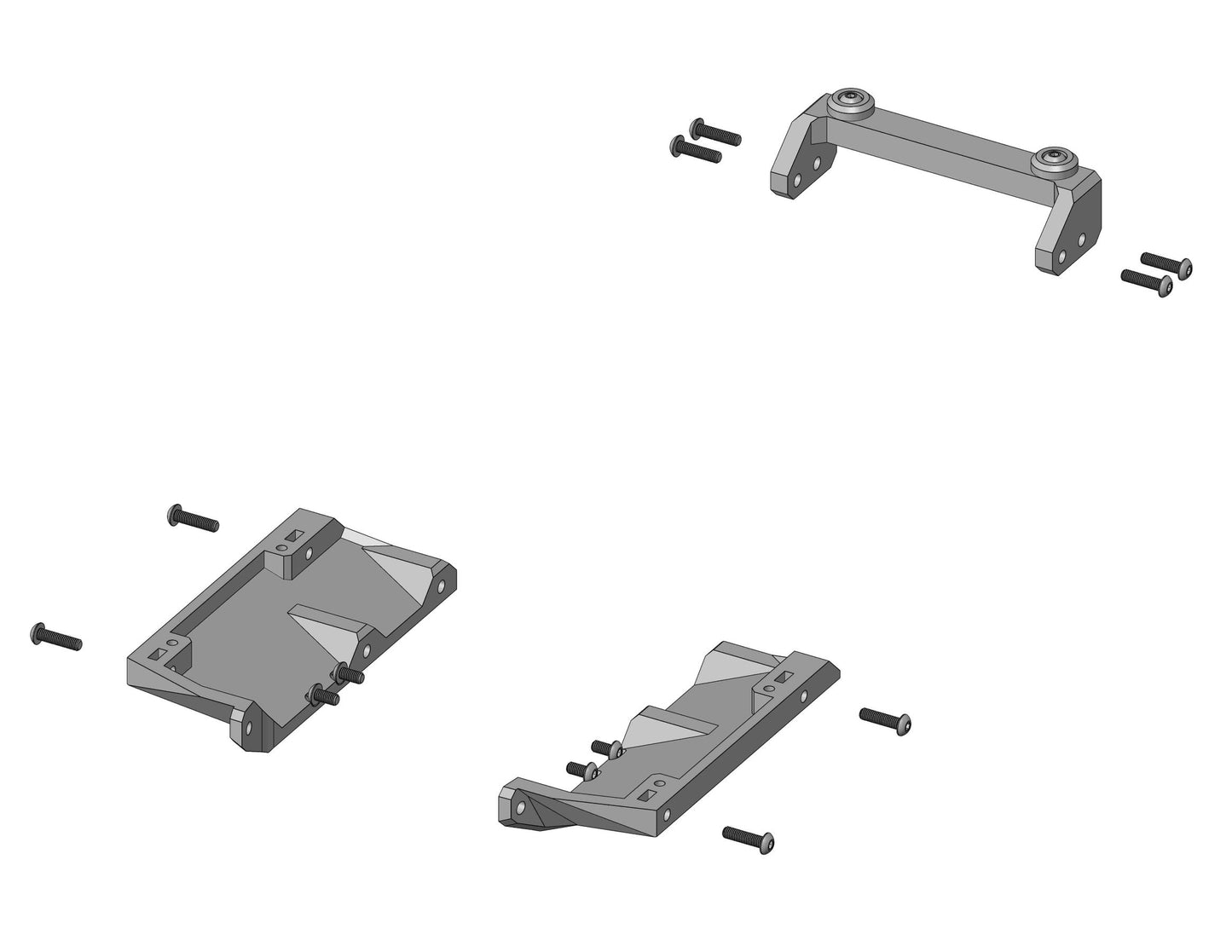

Element Enduro/Sendero/Trailrunner Use 11.8" rear links from Element rear link set (p/n ASC42044) with Traxxas short rod ends (p/n TRA5347) to get a 11.4" wheelbase. Not recommended for Enduro SE, Utron, or Stealth XF Transmission if using an interior. Not compatible with Comp Fox Competition Rock Crawler kit.

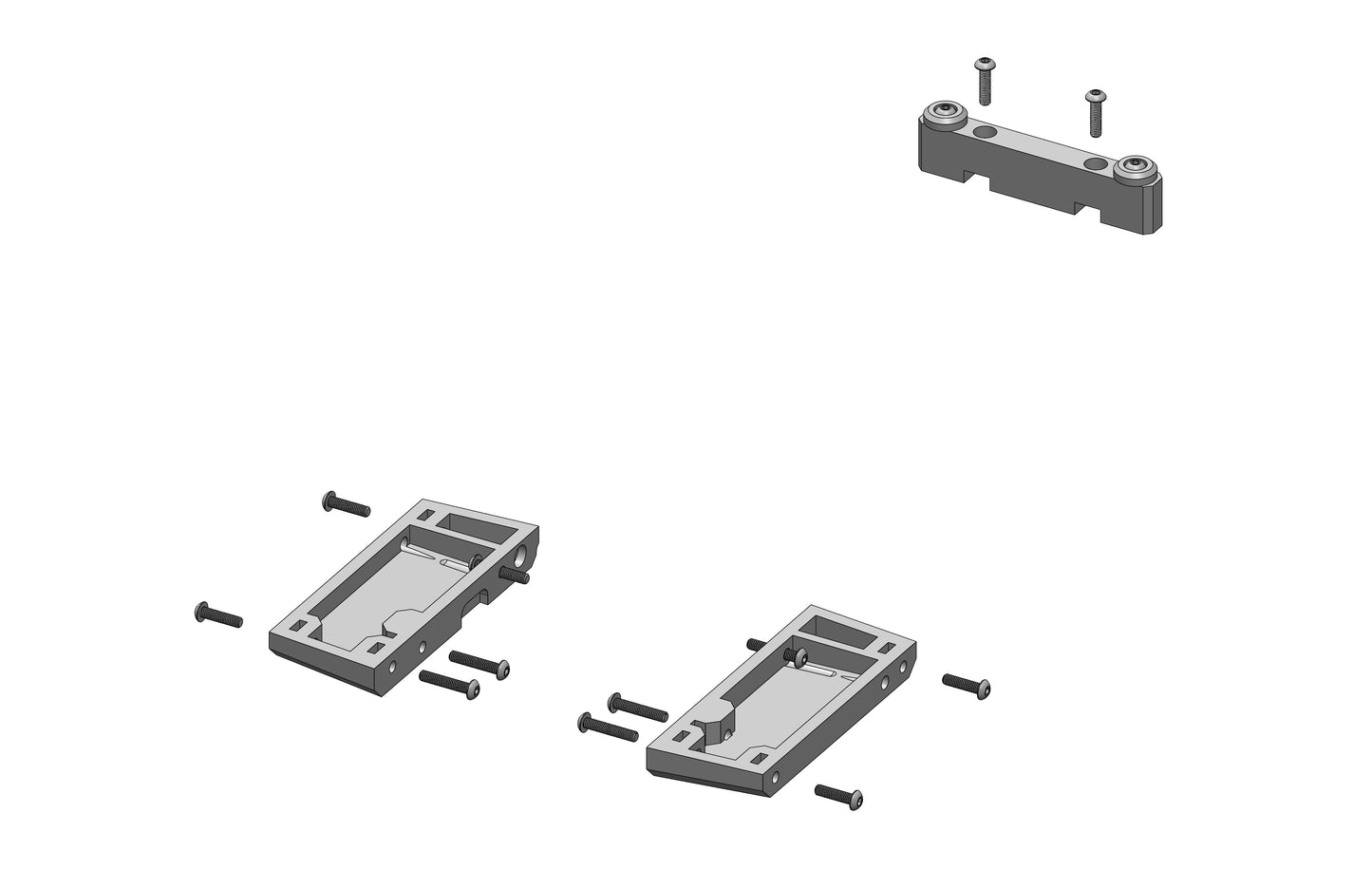

RC4WD TF2 & 1982 Toyota Pickup Hard Body Direct fit.

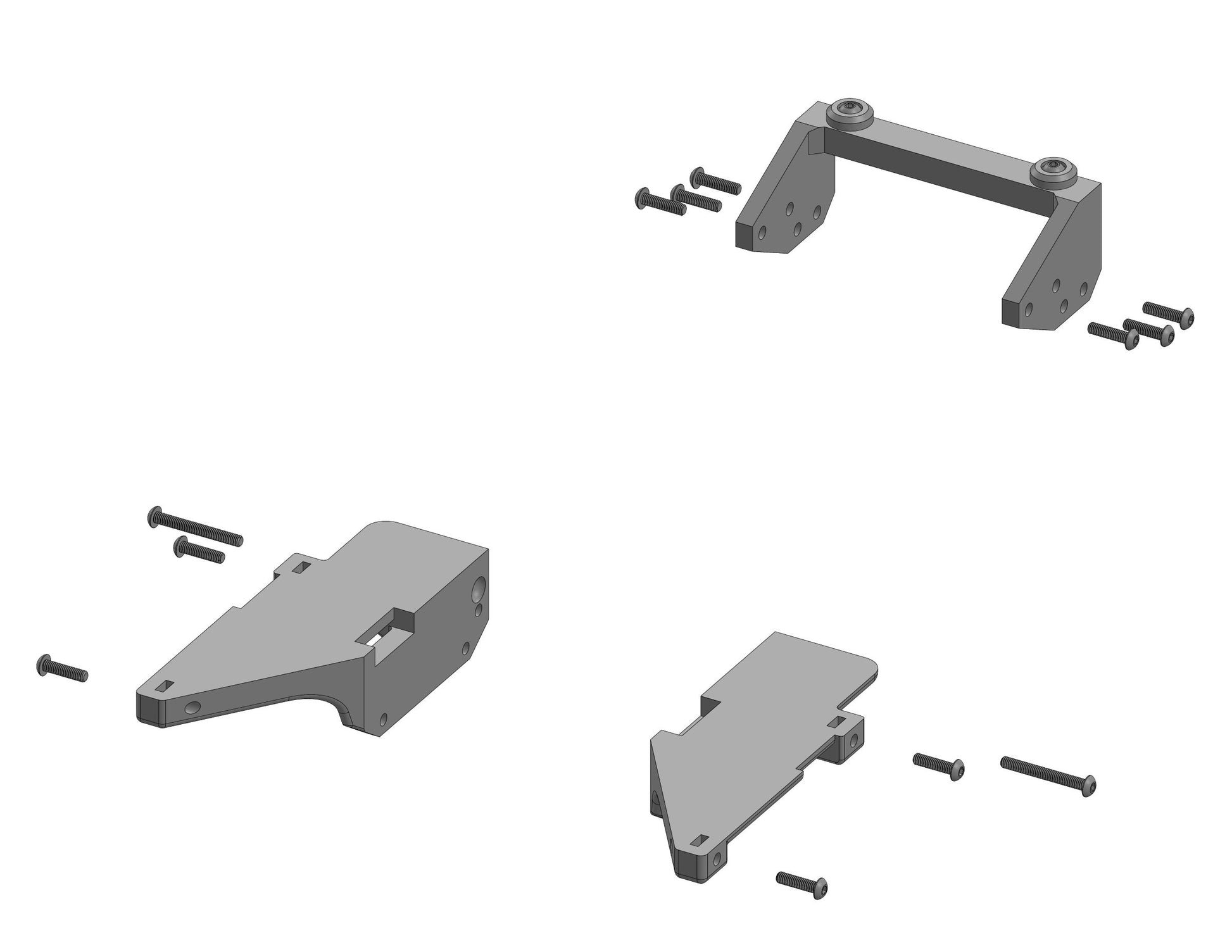

Redcat Ascent & Fusion Requires custom rear links. For a video on how to make custom links check out this video: How to Make Custom Links

SSD RC Trail King Pro Use rod ends (AX31186), upper links (AX31421), lower links (AX31419), and set screws (AX31343) to get a 11.4" wheelbase.

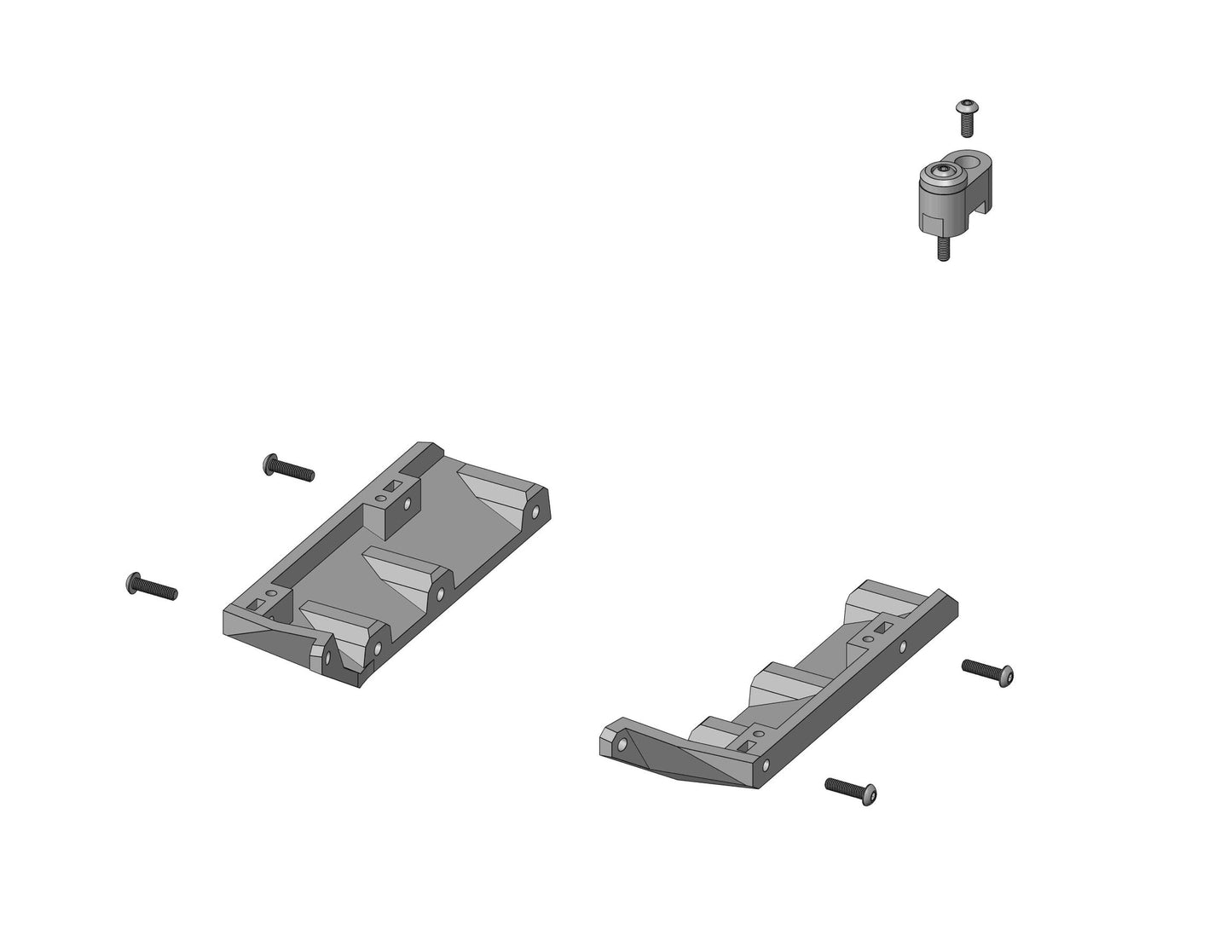

Traxxas TRX4 Requires custom rear links. For a video on how to make custom links check out this video: How to Make Custom Links

Please read:

4.19 Tires recommended and/or be prepared to cut the body.

Interiors will require cutting to clear the transmission. It is typically necessary to relocate the factory ESC, receiver, and battery tray.


Holes must be made in the bed to clear the rear shock towers, or switch to shorter towers, or cantilevers.

Stainless steel hardware included. Body not included. Made in USA. Shrink RC

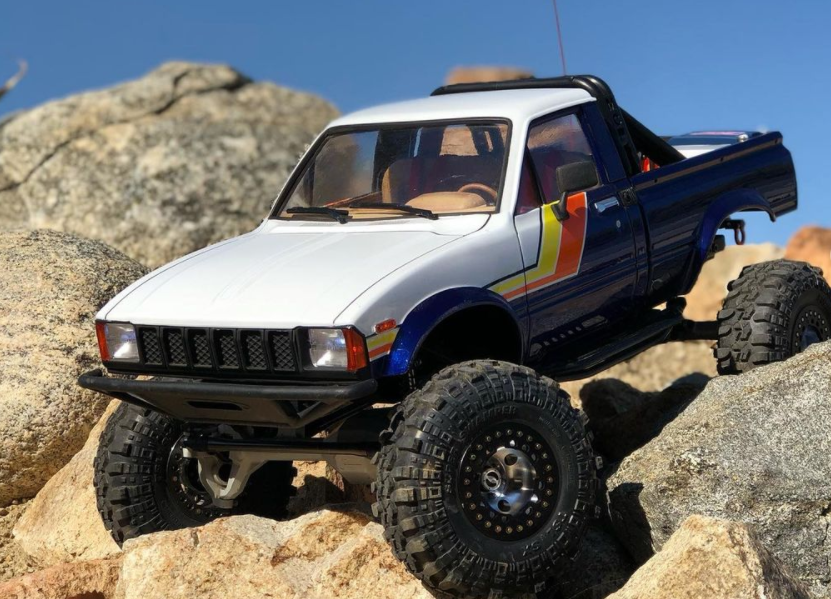

Photo: @monster_fab_rc


Shop Mojave II Two Door bodies here: RC4WD Mojave II 2 Door

Shop for 4x4 crawler chassis here: Amain Hobbies

This product is not affiliated with, endorsed by, or associated with Traxxas, L.P., or its products and services. Traxxas® and TRX-4® are trademarks or registered trademarks of Traxxas, L.P.
